High speed toroidal core winding machine
Core winding machine is the special equipment for manufacturing the step-lap open core of wound core transformer.
Product Description
Usage:
Core winding machine is the special equipment for manufacturing the step-lap open core of wound core transformer.
Composition:
Features:
Driven by servo motor, the feeding device features high feeding accuracy and convenient feeding length adjustment.Servo controlled winding device ensures smooth starting, quick braking and accurate angle positioning of the winding shaft.
Real-time outside diameter of the core is measured dynamically by micro- pulse displacement sensor to ensure accuracy of the finished core.
High quality inverter TIG welder achieves strong, reliable and beautiful welding.
Core discharging device adopts advanced pneumatic proportional pressure control to ensure smooth and reliable discharging of the core.
All operations are controlled by PLC. Color touch screen is adopted to operate the machine, easily input and rectifyparameters and display running status.
With high quality components and parts, the machine features reliable operation, high efficiency and low maintenancecost, etc.

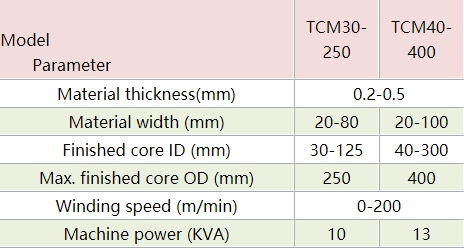

Technical specifications：
