Paper covered wire combination conductor
Paper covered wire and composite wire are important materialsfor making transformer winding. lt is mainly used to manufacturewindings of power transformers
Product Introduction

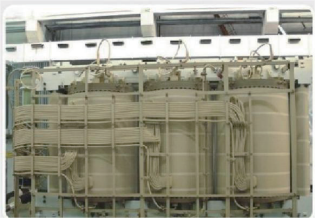

Paper covered wire and composite wire are important materialsfor making transformer winding. lt is mainly used to manufacturewindings of power transformers, reactors and distributiontransformers.
Spencer specializes in the production of copper, aluminumconductor paper covered wire,combined wire, productdimensions accurate,wrapping moderate tightness, continuousno joint length of more than 8000 meters.
Cross section diagram of Papercovered wire combinationconductor
Paper covered wire
Enamelled paper covered wire
Bareflatwire combination conductor
Papercovered wire combination conductor
Enamelled wire combination conductor
Composite conductorwith membrane covered wire
ProducingbaseonCustomer Standard available.
Technical Data
Paper Covered wire Conductor Specification
0ptimal Sheet Wire Conductor Size:
thickness 0.80~12.00 mm
Width3.00~25.00 mm
Width vs Thickness:≤20
Maxcross section 200mm
0ptimal round wire conductorsize:
Diameter 2.00~5.00 mm
Enamelled paper wrapped wire and enamelled composite conductor specifications
0ptimal Sheet Wire Conductor Size:
Thickness 1.00~3.00 mm
width5.00~18.00mm
0ptimal round wire conductorsize:
Diameter 2.00~5.00 mm
Bare wire, paper wrap, film wrap combined conductor specifications
Optimal conductorsize:Thickness 1.00~6.00mm，width 4.00~20.00 mm
Insulation wrappingmethod
Butt wrap -- butt gap is not more than 0.5mm
overlap wrap --overlap width 2-4mm
Interlock wrap--interlace 50%
Material Standard
Conductor Material
High quality oxygen-free copper rod selectedto produce the copper conductor,oxygen content is less than 20 ppm, conductivity is greaterthan 100% after annealing.
Optimal Non-proportional extension strength of semi-hard copper conductors (Rp0.2)
as below:C1 Rp0.2(>100~180)N/mm2Rp0.2 <200N/mm2 resistivity<1/58Q.mm?/m
C2 Rp0.2(>180~220)N/mm2Rp0.2>200N/mm2，resistivity<1/57.8 Ω.mm'/m
C3 Rp0.2(>220-260)N/mm2
High-quality electrician round aluminum rod was used to produce the aluminum conductor,conductivity is greater than 62% after annealing.
Wrappinginsulation material
High qualityofwrappinginsulation material
Cable paper
High densityinsulation paper
Heat resistinsulation paper
Highelongation fiber paper
Aromatic polyamide Paper(Nomex)
PETfilm
Insulation material brand, type and spec customized available.
Production Package
Optimal Pony Roll
