Introduction:

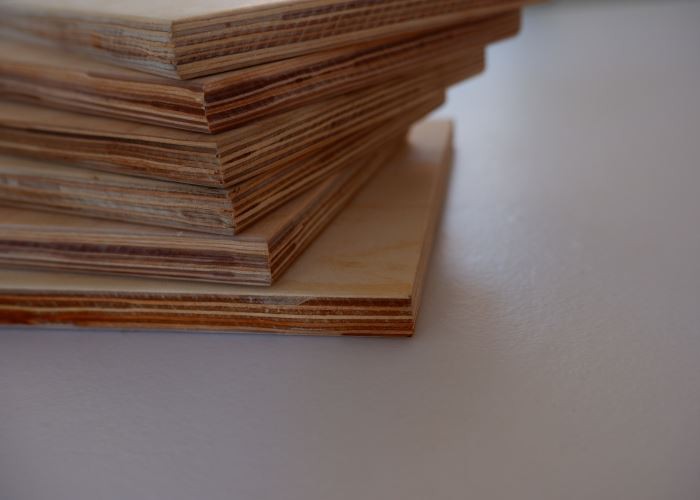

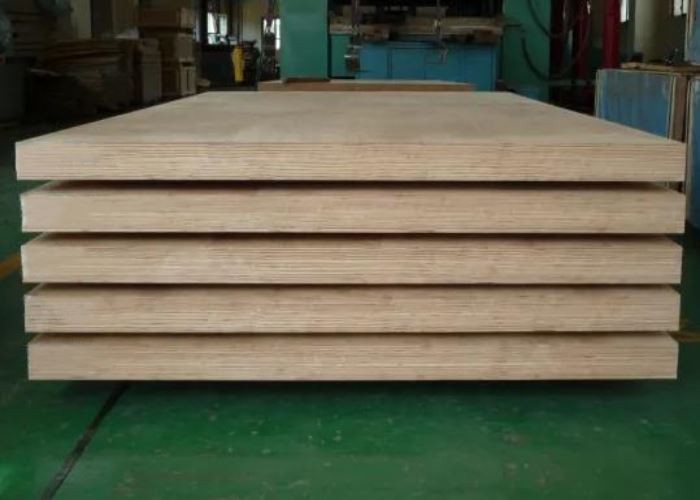

Compressed laminated wood is a multilayer insulation material made of common beech veneer. The veneer is glued under high pressure using synthetic resins. In addition to very good electrical properties, this material has excellent mechanical properties.
Properties
high mechanical strength
good electrical insulating properties
low thermal conductivity, thereby good thermal insulation
excellent oil absorption
low weight
Technical parameter:
Sizes | mm | 1000 x 1500, 2000 x 1000 1200 x 2200, 2400 x 1200, 1500 x 3000 |
Tolerance (length and width) | mm | ± 5.0 |
Thickness | mm | min. 8, max. 120 |
Thickness tolerance (≤ 10) | mm | ± 1.4 |
Thickness tolerance (> 10 ≤ 15) | mm | ± 1.6 |
Thickness tolerance (> 15 ≤ 20) | mm | ± 1.8 |
Thickness tolerance (> 20 ≤ 25) | mm | ± 2.0 |
Thickness tolerance (> 25 ≤ 30) | mm | ± 2.2 |
Thickness tolerance (> 30 ≤ 40) | mm | ± 2.6 |
Thickness tolerance (> 40 ≤ 60) | mm | ± 3.0 |
Thickness tolerance (> 60 ≤ 120) | mm | ± 4.0 |
Application
Transformer construction and thermal insulation in gas tankers.
Note:
We process all common grades of synthetic resin-compressed wood according to DIN 7707, IEC 61061 using constituents such as selected peeled veneers of beech and special synthetic resins. By impregnation or pressing under high pressure and temperature, a homogenous material is created with excellent technical properties.
Different product qualities can be achieved by varying the material structure, resinification and compaction.
Packaging & Delivery
Packaging Details: Normal Export Packing, Wrapped with plastic film for moisture proof; then packed with plywood pallet.
Delivery Detail: Within 30 days after receiving T/T payment ( at least 30%)
Machined parts：
Top & Bottom pressure ring, Pressure Beams, step block, densified wood support, fasteners or other items for Power & Distribution Transformers.
