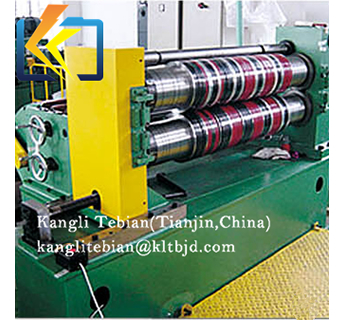

Silicon steel slitting machine
This slitting machine is special equipment to slit silicon steel sheet coil into strips,then rewind them into strip rolls with tension.
Introduction:?
This slitting machine is special equipment to slit silicon steel sheet coil into strips,then rewind them into strip rolls with tension.
Composition:
1.Loading trolley 2.Decoiler 3.Sheet guiding device and sheet end cutter 4.Slitter and strip guiding device 5.Edge strip winder 6.Tensioner 7.Rewinder 8.Control cabinet 9.Operating console
????????????Model | SL(05)-1000/80 | SL(10)-1250/120 | SL(10)-1250/150 |
Inner diameter of coil (mm) | Φ500 | Φ500 | Φ610 |
Width of coil (mm) | 1000 | 1250 | |
Max. weight of feeding coil (kg) | 5000 | 10000 | |
Max. weight of finished coil (kg) | 5000 | 10000 | |
Strip thickness (mm) | 0.23-0.5 | ||
Strip width (mm) | 40-1000 | 40-1200 | |
Shearing speed (m/min) | 0-80 | 0-120 | 0-150 |
Strip burr (mm) | ≤0.02 | ||
Max. number of strips | 10 | ||
Straightness deviation of each edge | ≤0.2mm/2m | ||
Strip width accuracy (mm) | ±0.1 | ||
Installed power (kw) | 54 | 87 | 100 |
Total weight (t) | 20 | 27 | 36 |
Outline dimensions (L×W×H) | 12×6.5×2.2 | 15×6.5×2.5 | 15×6.5×2.5 |
