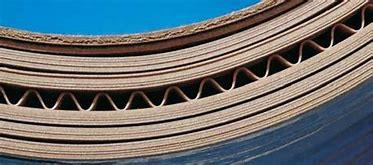

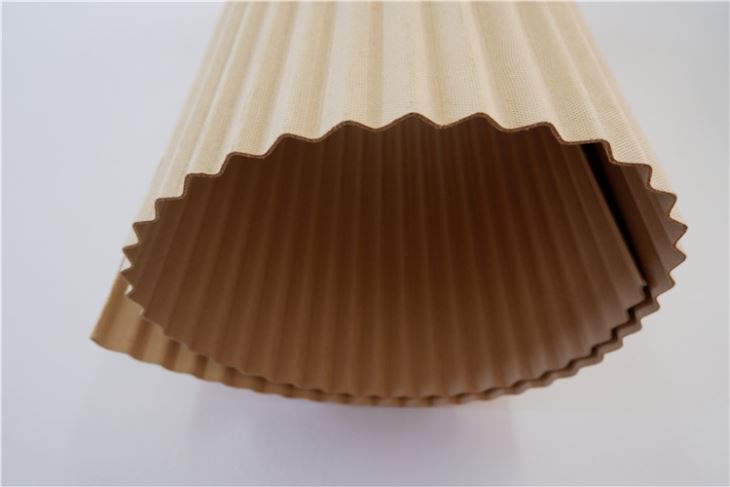

The corrugating paperboard is made of compacted press-board, and has good mechanical strength and electrical properties. It can be easily installed.
Description:
The corrugating paperboard is made of compacted press-board, and has good mechanical strength and electrical properties. It can be easily installed.

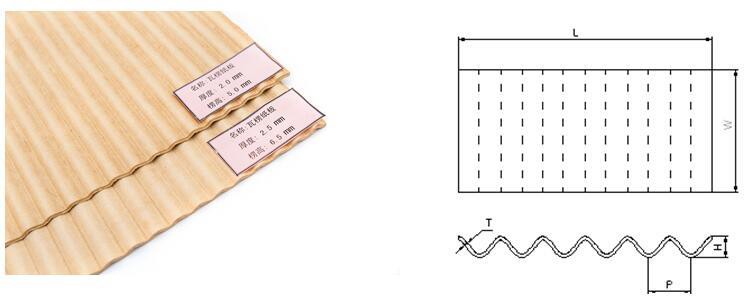

Dimensions and Tolerances (mm):
No. | Property | Value | Tolerance |
1 | （T）Thickness | 1.0mm 1.5mm 2.0mm | ±0.5 |
2 | （W）Width | ≤1000mm | ±3 |
3 | （H）Height | 4.5-7.5mm | ±0.3 |
4 | （L）Length | ≤2000mm | ±50 |
5 | （P）Pitch | 15mm | ±2 |
Technical parameter:
Property | Unit | Standard Value | |
Average | Lowest level | ||
Moisture Content | % | <7.0 | / |
Ash Content | % | <0.8 | / |
Conductivity of Aqueous Extract | μS/cm | <10.0 | / |
Yield Strength | Kg/cm | >11.0 | >9.0 |
Characteristic:
1. High mechanical strength
2. Excellent electrical performance
3. Stable shape and accurate size
Application:
This product mainly applied to oil-immersed transformer as insulation material. It can even the distribution of the solid insulation materials.
