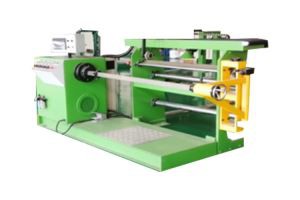

Automatic winding machine is suitable for all kinds of coil winding processes of small and medium-sized transformers, mutual inductors, reactors and so on.

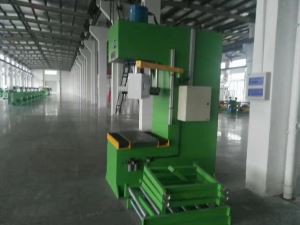

This coil press is suitable for shaping the coil size of amorphous alloy transformer. Its working parameters of the coil are set according to the design requirements and the maximum pressure of the coil.

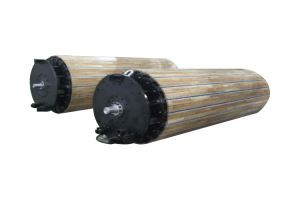

This mandrel is newly designed for winding transformer coils. They are compatible with both vertical and horizontal winding machines.

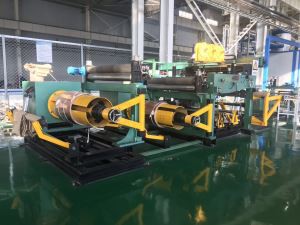

The tension of this foil winding machine adopts the mixed tension of oil and gas, which avoids the unstable tension caused by unstable air pressure.

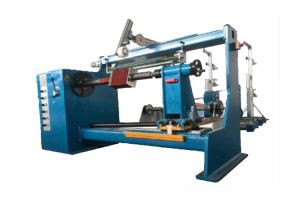

Stepless speed adjustment of the winding systems guarantees stable starting and braking of the winding shaft.

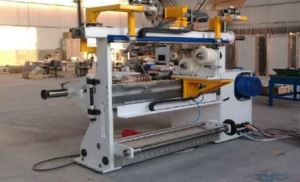

The major difference with routine winding machine is that it uses insulation paper strip,not wide insulation paper,to wind layer insulation of the coil.

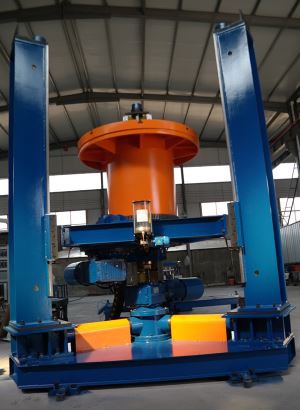

The chuck can be elevated up and down according to the height of the coil during winding. Speed of the chuck is stepless regulated.

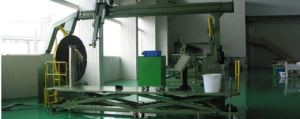

It’s used to manufacture coils of high capacity transformers and inductors.
