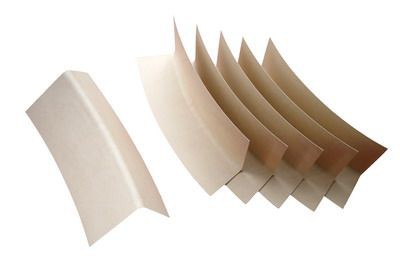

This angle ring is made of paper pressboard through wet molding, which is easy to install and has good insulation performance and high mechanical strength.
Description:
This angle ring is made of paper pressboard through wet molding, which is easy to install and has good insulation performance and high mechanical strength.

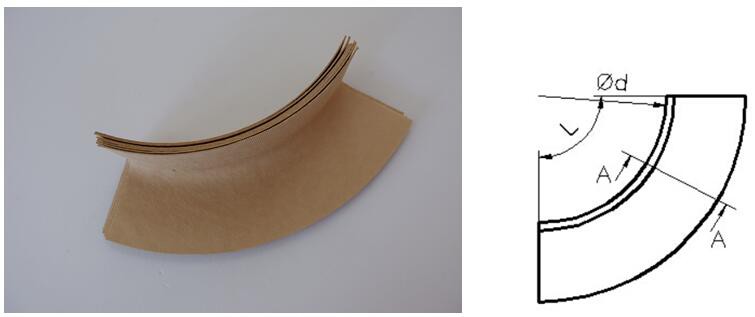

Dimensions and Tolerances:
Φd | Resolution number n | Thickness | R |
250-300 | 6 | 1 | 10, 20 |
300-350 | 6 | 1.5 | 10, 20 |
350-400 | 5 | 2 | 10, 20 |
400-500 | 5 | 3 | 10, 20 |
Characteristic:
Uniform density
Flat surface
No internal damage or surface wrinkles
Application:
These excellent properties make the this angle ring suitable for the insulation of the upper and lower edges of the coil. If it is placed in parallel with the electric field line, it could shorten insulation distance of the coils.
