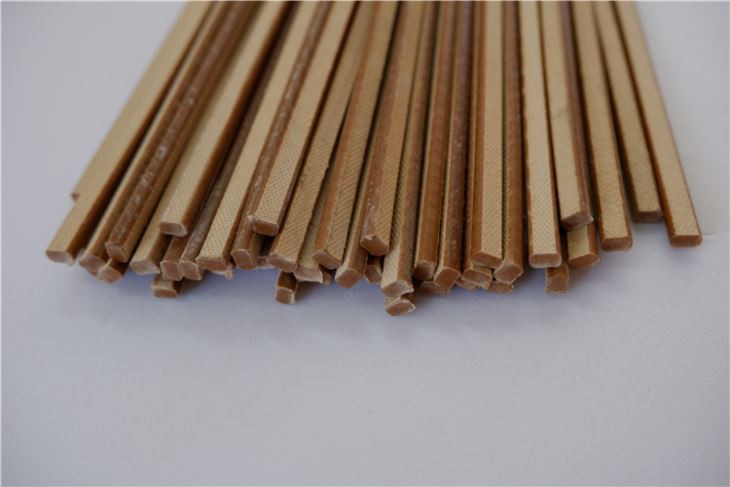

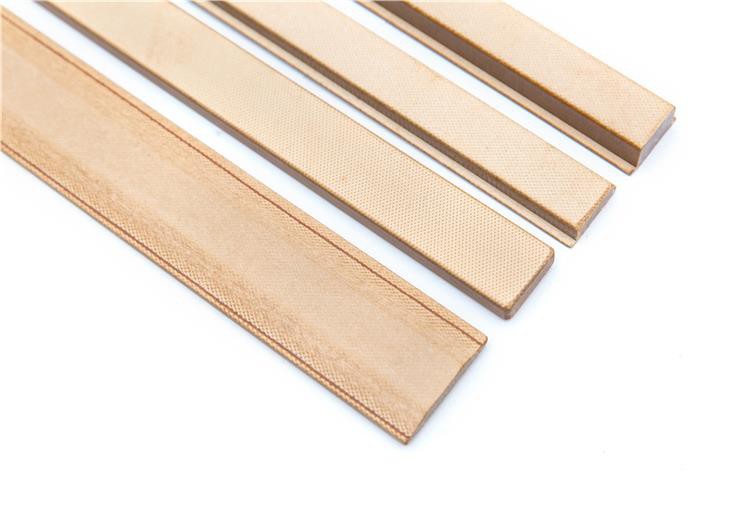

Oil duct strut is made from high quality G4 grade press-board. It has high mechanical and electric strength. Main Strips: Rectangular strips, T-strips, trapezoidal strips and other special shaped strips.
Description
Oil duct strut is made from high quality G4 grade press-board. It has high mechanical and electric strength. Main Strips: Rectangular strips, T-strips, trapezoidal strips and other special shaped strips.
Specification:
Length: at your request
Width: 5-12mm
Thickness: 3-8mm
Dimensions(mm):
Type | Thickness T | Width w | r | A | Length L |
A
| ≥4 | / | 0.3 | 2.0～3.3 | ` L≤3000 |
B
| ≥4 | ≥13 | 0.7 | / | |
C
| ≥4 | ≥12 | 0.7 | 2.0～3.3 | |
D
| ≥4 | ≥4 | 0.7 | / | |
E
| ≥4 | ≥4 | 1.5 | / | |
F
| 1-3 | ≥22 | T/2 |
Application:
This product mainly applied to oil-immersed transformer as insulation material.
