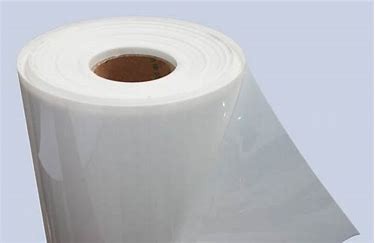

Milky White Polyester Film for Electrical Insulation

6021 Milky White Polyester Film laminates is several layers composite material,one layer polyester film is bonded on another layer polyester film.

Send Inquiry

Description:

6021 Milky White Polyester Film laminates is several layers composite material,one layer polyester film is bonded on another layer polyester film. Its main raw material is polyester resin. 6020 is a transparent film, 6021 is a milky white film.

Characteristics:

The product has good insulation property, anti-aging property, low shrinkage and high heat-resistance properties.

Application:

Milky White Polyester Film can be used in liner insulation in high voltage coil.

Technical parameters:

Properties				Units	Values
Tensile strength(MD and TD)		25μm~100μm >100μm~190μm >190μm		MPa	≥150 ≥140 ≥110
Elongation at break (MD and TD)		25μm~50μm >50μm~350μm		%	≥60 ≥80
Shrinkage (MD and TD)		25~190μm >190μm		%	≤3.0 ≤2.0
Volume resistivity				Ω·M	≥1.0×1014
Relative dielectric constant (50Hz)				/	2.9~3.4
Dielectric dissipation factor (50Hz)				/	≤5.0×10-3
Density				kg/m3	6020	6021
					1390±10	1400+10-20
Melting point				°C	≥256
Surface resistivity				Ω	≥1.0×1013
Electrolytic corrosion	Ocular estimate			Class	A1
	Metallic conductivity tensile Strength method			%	≤2
Dimensional stability in high temp.	With tension			°C	≥200
	With pressure				≥200
The quality warranty period			Twelve months
