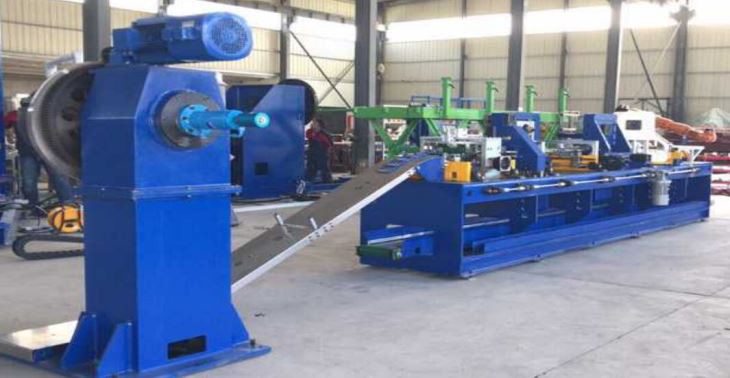

CTL(D13)-250 Cut-to-length Robot Line

Equipped with robotic arm stacking function, CTL(D13)-250 cut-to-length robot line is a special equipment for manufacturing small&medium sized transformer lamination.

Send Inquiry

Product Description

Introduction:　

Equipped with robotic arm stacking function, CTL(D13)-250 cut-to-length robot line is a special equipment for manufacturing small&medium sized transformer lamination.

Features:

1. Using stacking robots to replace workers to stack lamination precisely and rapidly.

2. Continuous working and intermittent maintenance to ensure stable productivity.Closed core or without yoke core can be stacked.

3. Robots connect with cutting line control system and all stacking data can be transported to factory production office.

4. For long lamination two robots can stack same one transformer at same time. For short lamination each robot can stack 2 to 5 transformers separately up to the typeof robots.

Technical Parameter

	CTL(D13)-250
Width of the sheet	35-260mm
Length of the sheet	250-1250mm
Thickness of the sheet	0.18-0.35mm
Width accuracy	±0.1mm
Length accuracy	≤0.2mm/2000mm
Angle accuracy	±0.01゜
Cutting burr	≤0.02mm
Hydraulic de-coiler	Single head
Load of de-coiler (max.)	2400kgX1
Feeding speed	0-214m/min
Tacking method	Robotic arm stacking KUKA Magnetic stacking
PLC	BECKHOFF
Servo system	BECKHOFF
AC convertor	SIEMENS
