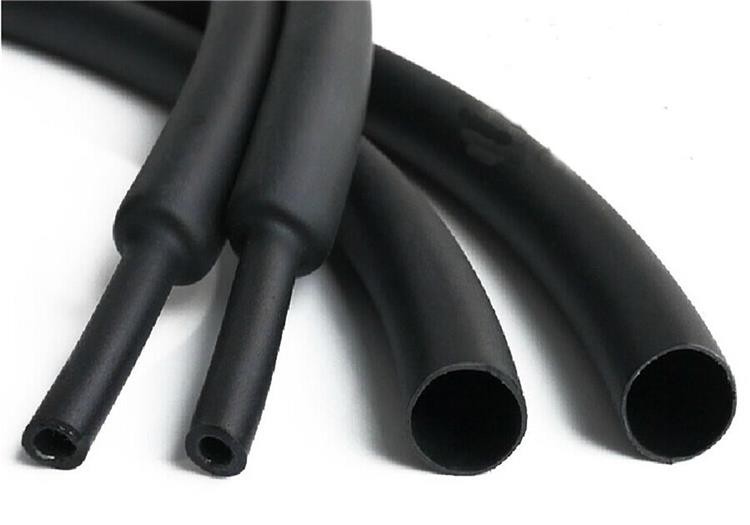

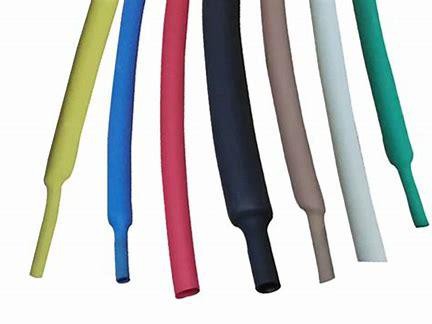

Heat Shrink Tube is a shrinkable plastic tube used for strain relief, abrasion resistance, environmental protection, and insulation for cables, joints, or terminals.
Description
Heat Shrink Tube is a shrinkable plastic tube used for strain relief, abrasion resistance, environmental protection, and insulation for cables, joints, or terminals.
Specification:
MOQ: 500m
Inner diameter: 1-30mm
Wall thickness: 0.2-0.5
Color: black or customized
Technical Parameter
Property | Unit | Test Method | Standard | |
Tensile Strength | MPA | ≥10.4(before aging) | GB/T 1040 | |
≥7.3(after aging) | 158ºC*168h | |||
Breakage Elongation (%) | % | ≥200(before aging) | GB/T 1040 | |
≥100(after aging) | 158ºC*168h | |||
Heat Shock | - | no sticking & no cracking | 250ºC*4h | |
Cold Blend | - | no cracking | -30ºC*4h | |
Breakdown Strength | KV/mm | ≥15 | GB/T 1408 | |
Dielectric Strength | 600V | - | Pass | no breakdown for 2500V, 60s |
300V | - | Pass | no breakdown for 1500V,60s | |
Volume Resistivity | Ω. cm | ≥1×1014 | GB/T 1410 | |
Corrosion Performance | - | pass | 158ºC*168h | |
Copper Stability | - | pass | 158ºC*168h | |
Flammability | - | pass | VW-1 | |
Characters
Environmental friendly
Flame retardant
Application
Electrical insulation, welding point anti-corrosion, mechanical protection and so on.
