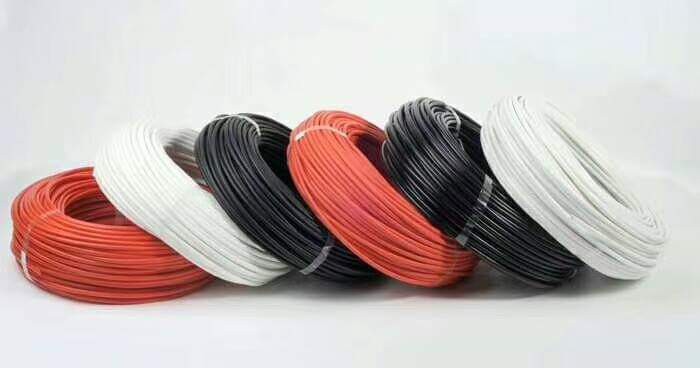

Silicone fiberglass sleeving is braided with non-alkali fiberglass yarn and then coated with silicone resin.
Description
Silicone fiberglass sleeving is braided with non-alkali fiberglass yarn and then coated with silicone resin.
Specification:
MOQ:10000 meters
Breakdown voltage:1.5kv 2.5kv 4.0 KV
Diameter: 0.5-30 mm
Packing: 1 meter or 50-100m/roll with carton or bag, can be according to customer's request.
Technical Parameter
Inner Diameter(mm) | Wall Thickness(mm) | ||
Nominal | Tolerance | Nominal | Tolerance |
0.5 | ±0.15 | 0.50 | ±0.15 |
1, 1.5, 2, 2.5 | ±0.20 | 0.50 | ± 0.15 |
3, 4, 5, 6 | ±0.25 | ||
8, 9, 10 ,12 | ±0.30 | 0.70 | ± 0.20 |
14,16,18,20 | ±0.50 | 0.70 | ±0.30 |
25 | ±0.60 | 1.0 | ±0.50 |
30 | ±0.60 | 1.5 | ±0.50 |
Characters
Heat-resistance: H Class (180℃)
Self- extinguishment
Good dielectric & chemical resistance
Excellent softness & elasticity
Application
This product can be used for wiring insulation and mechanic protection for electrical instruments, wireless sets and domestic electrical appliances.
