Insulation Cable Paper

Cable paper is made of 100% superior sulfate insulating wood pulp.

Send Inquiry

Description:

Cable paper is made of 100% superior sulfate insulating wood pulp.

Specification:

Thickness: 0.05mm-0.15mm

Width: 960mm 1000mm

Size: in Sheets or in Rolls

Technical Parameter

Test No.	Item		Unit	Qualified Data		Test Data
1	Tightness		g/cm³	0.90±0.05		0.92
2	Tensile strength	vertical	KN/m	≥	11.0	11.3
		horizontal		≥	5.2	5.28
3	Elongation	vertical	％	≥2		2.1
		horizontal		≥5.4		5.5
4	Tear Strength（horizontal）		MN	≥	1020	1212
5	Conductivity of Water Extract		MS/m	≤	8.0	4.2
6	Breakdown Voltage		KV/ mm	≥8.0		8
7	Dissipation Factor		---	≤0.5		0.38
8	PH of Water Extract		---	6.5～8.5		7.5
9	Ash Content		%	≤0.7		0.26
10	Moisture Content		％	6.0～8.0		7.5

Application:

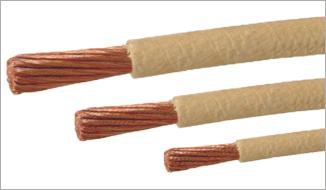

Used widely as electrical insulation wrap on aluminium and copper wires by conductor manufacturers, electrical insulation between layers of wound coils in electrical motors, capacitors, transformers & other electrical equipment.
