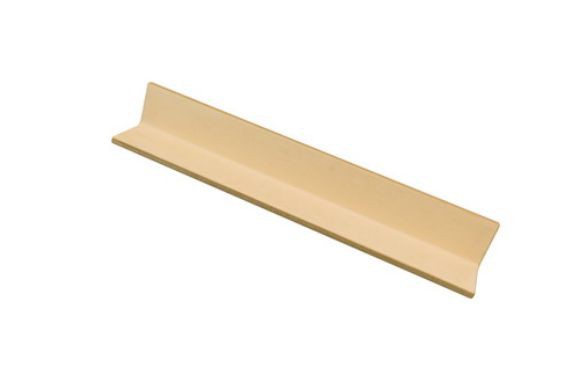

This angle bar is made of paper pressboard, which is easy to install and has good insulation performance and high mechanical strength.
Description:
This angle bar is made of paper pressboard, which is easy to install and has good insulation performance and high mechanical strength.

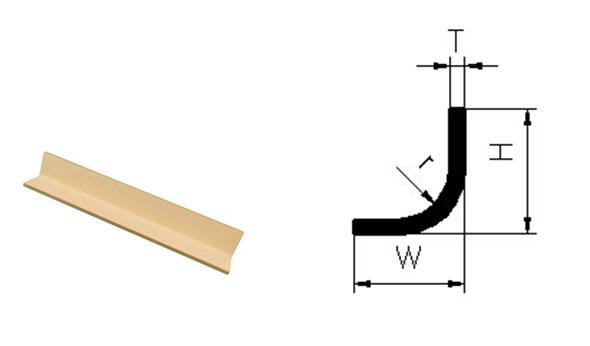

Dimensions and Tolerances:
No. | Property | Value | ||||
1 | Thickness (mm) | T | ≤12 | 12<T≤18 | >18 | |
Tolerances | ±0.50 | ±1.0 | ±1.5 | |||
2 | Width (mm) | W， I | 50-200 | >200 | ||
Tolerances | ±2.0 | ±2.5 | ||||
3 | Length (mm) | ≤1200 | 1200<L≤2400 | >2400 | ||
Tolerances | ±3.0 | ±4.0 | ±5.0 | |||
4 | Round | r | 3<r≤15 | |||
Tolerances | ±2.0 | |||||
5 | Angle | 90° | ||||
Tolerances | ±3° | |||||
Application:
These excellent properties make the angle bar widely used in oil-immersed transformers, especially used in large transformers above 110KV.
