Introduction:

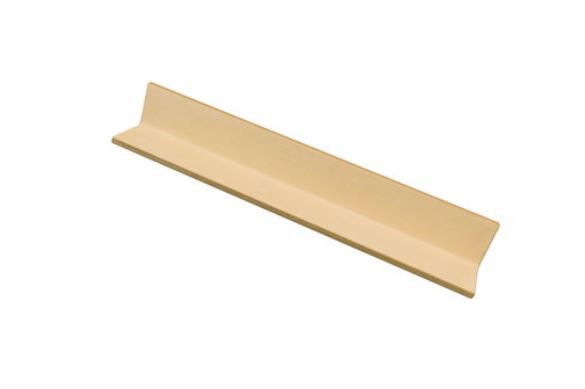

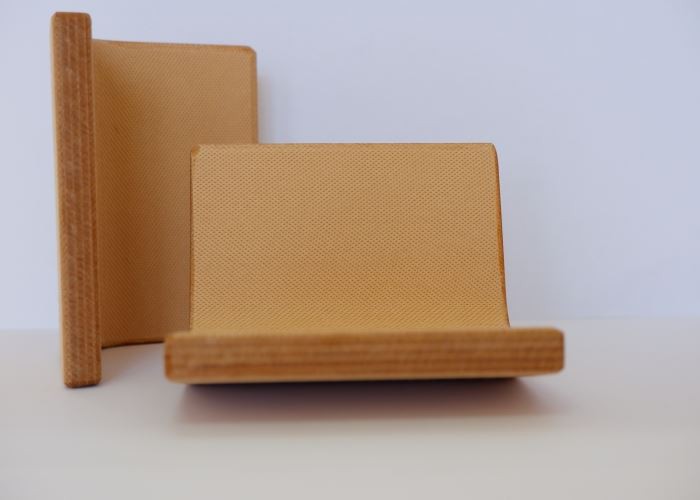

The L shape clamp are commonly known as paper corner plates. They are ideal bracket and clip insulation for oil-immersed transformers. It is made of pressboard and has the characteristics of good insulation performance, high mechanical strength, easy installation and so on. Among large transformers above 110KV, it also shows the advantages of good straightness and stable form. It is a product that is difficult to replace l, and it is also very economical.
Application:
These excellent properties make the angle bar widely used in oil-immersed transformers, especially used in large transformers above 110KV.
Dimensions and Tolerances:
No. | Property | Value | ||||
1 | Thickness (mm) | T | ≤12 | 12<T≤18 | >18 | |
Tolerances | ±0.50 | ±1.0 | ±1.5 | |||
2 | Width (mm) | W， I | 50-200 | >200 | ||
Tolerances | ±2.0 | ±2.5 | ||||
3 | Length (mm) | ≤1200 | 1200<L≤2400 | >2400 | ||
Tolerances | ±3.0 | ±4.0 | ±5.0 | |||
4 | Round | r | 3<r≤15 | |||
Tolerances | ±2.0 | |||||
5 | Angle | 90° | ||||
Tolerances | ±3° | |||||
Sample:
Free sample available but not free delivery.
Delivery:
We will deliver the goods to you based on the confirmed cooperation agreement. We have special personnel to strictly check the quality of the goods before packing and delivery.
Cooperation:
Dedicated to our belief: honest and trustworthy, we have the entrepreneurial spirit of assisting partners to achieve their own careers, and provide customers with quality and service.
FAQ:
Q1. What's the payment term ?
A. T/T and L/C is acceptable and TT will be more appreciated. 30% deposit, 70% balance against B/L copy. Or 100% irrevocable LC at sight.
Q2. How to buy your ideal products?
A. You can provide us with your drawings with specifications, we will produce as per your drawing. Or we can design as your requirements if you do not have a clear plan.
Q3. What is your Packing/Package ?
A. Standard export packing or Customized packing as your request.
Q4. Would you accept to use our logo ?
A. OEM/ODM can be acceptable.
Q5. What kind of certificate you have ?
A. Our company already achieve ISO9001 certificates and we have test reports.
Q6. What else can I do for you?
A. Our salesmen will reply your inquiry within 24 hours. We can give you any support on the technique& other aspects.
