NMN Insulation Composite Paper

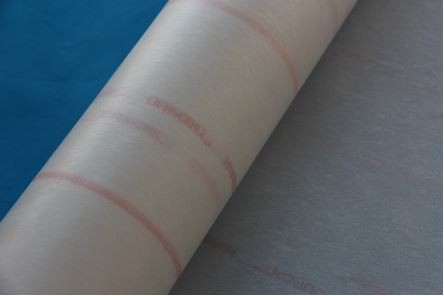

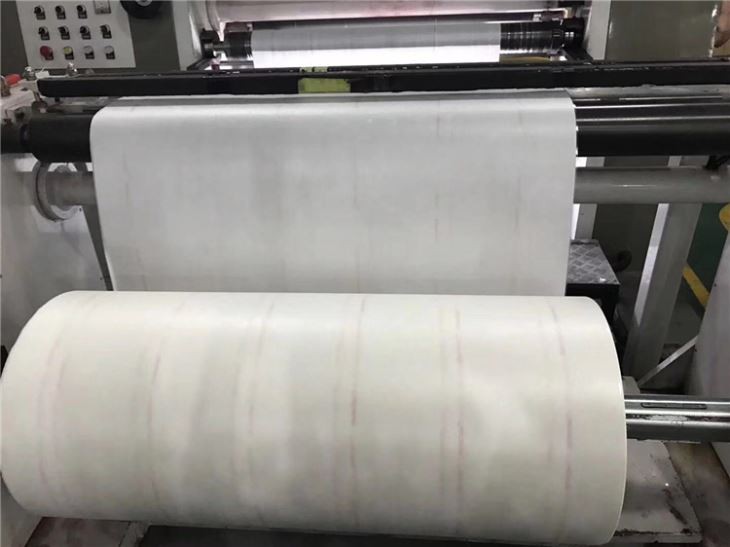

NMN(6640) Polyester Film & NOMEX Amide Fiber Paper Composites are a family of 3-ply laminates of NOMEX amide paper bonded to both sides of polyester film.

Send Inquiry

Description

NMN(6640) Polyester Film & NOMEX Amide Fiber Paper Composites are a family of 3-ply laminates of NOMEX amide paper bonded to both sides of polyester film.

Specification:

MOQ: 500kg

Thickness: 0.18mm 0.20mm 0.25mm 0.30mm 0.35mm

Width: 914mm

Color: White with orange line

1 (1)

Technical Parameter

NO	Properties			Unit	Values
1	Nominal Thickness			mm	0.15	0.18	0.2	0.23	0.25	0.3	0.35
2	Thickness Tolerance			mm	± 0.02		± 0.03			± 0.04
3	Nominal Grammage			g/	180± 25	210± 30	240± 30	260± 35	300± 40	350± 50	430± 50
4	Tensile Strength	MD	No Bending	N/10	≥ 150	≥ 160	≥ 180	≥ 200	≥ 220	≥ 270	≥ 320
		MD	After Bending	mm	≥ 80	≥ 110	≥ 130	≥ 150	≥ 180	≥ 200	≥ 260
		TD	No Bending		≥ 90	≥ 110	≥ 130	≥ 150	≥ 180	≥ 200	≥ 250
		TD	After Bending		≥ 70	≥ 90	≥ 110	≥ 130	≥ 150	≥ 170	≥ 200
5	Elongation	TD		%	≥ 10		≥ 12
5	Elongation	MD			≥ 15		≥ 18
6	Breakdowm Voltage	TD		KV	≥ 7	≥ 10	≥ 11	≥ 12	≥ 13	≥ 15	≥ 20
6	Breakdowm Voltage	MD			≥ 6	≥ 8	≥ 9	≥ 10	≥ 12	≥ 13	≥ 16
7	Bond Strength at 25C				No delamination
8	Bond Strength at 155C				No delamination, no blister, no adhesive flow
9	Temperature				≥ 180

Characters

Heat-resistance: F Class (155℃)

Good mechanical properties

Application

NMN Insulation composite paper is mainly used as a slot liner, slot closure and phase insulation in the production of low voltage motors. Besides this NMN is used as inter-layer insulation in transformers and other electrical machines and appliances.
