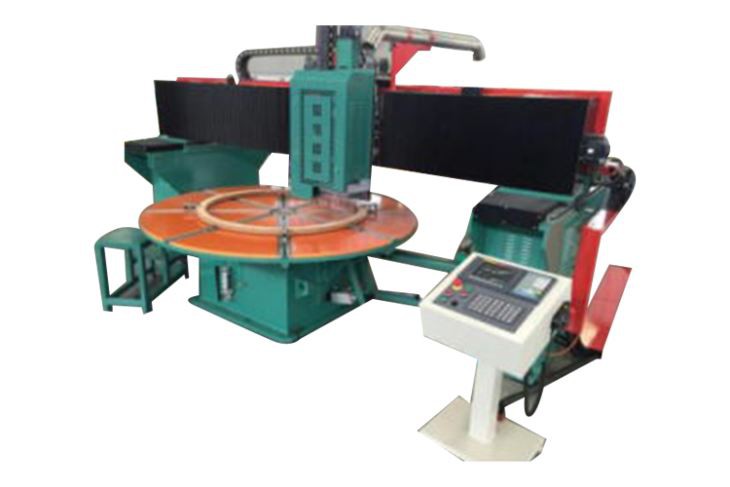

This machine is designed for manufacturing end rings for large-scale transformers. It is mainly used to mill the circular edges (inner and outer) as well as arc, straight and skew slots.
Description:
This machine is designed for manufacturing end rings for large-scale transformers. It is mainly used to mill the circular edges (inner and outer) as well as arc, straight and skew slots.
Composition:
The machine has mainly three parts: the table spindle drive, the cutting feed drive, and the electric control system.
Technical Parameter:
1. Worktable diameter : ø2200mm
2. Worktable speed: ≤ 10r/min
3. Milling shaft speed : ≤ 15000r/min
4. Moving distance vertical tool holder: 260mm
5. Milling shaft motor power: 11kw
6. Horizontal servo motor power: 1.5kw
7. Vertical servo motor power: 1.0kw
8. Dust collector motor power: 5.5kw
9. Main beam moving distance: 500mm
10. Distance between the beam and the work surface: 350mm
