After the transformer insulation board is milled and glued on the overlapping slope, the machine can then, through heat and pressure, bond the paperboard into a cylinder.
Description:
After the transformer insulation board is milled and glued on the overlapping slope, the machine can then, through heat and pressure, bond the paperboard into a cylinder. This machine has even distribution of heat and pressure, ensuring good bonding quality and shortened bonding time.
Composition:

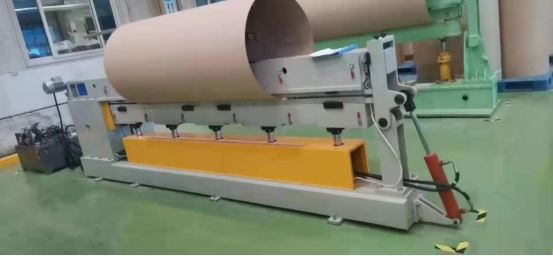

The hot press bonding machine consists of an upper pressing roller (upper pressing plate), a lower pressing plate, a cylinder, a frame body, and a temperature control system.
Technical Parameter:
1. Bonded insulation cardboard cylinder thickness:2~8mm
2. Bonded insulation cardboard cylinder diameter:250-3500mm
3. Bonded insulation cardboard cylinder height:1500~4000mm
4. Heating temperature: 50 ° C ~ 150 ° CTune
5. Temperature control accuracy: ± 2 ° C
6. Heating element: oil
7. Bonding surface width: 150mm (can be designed according to customer requirements)
8. Pressing method: hydraulic pressure (system pressure 12Mpa)
