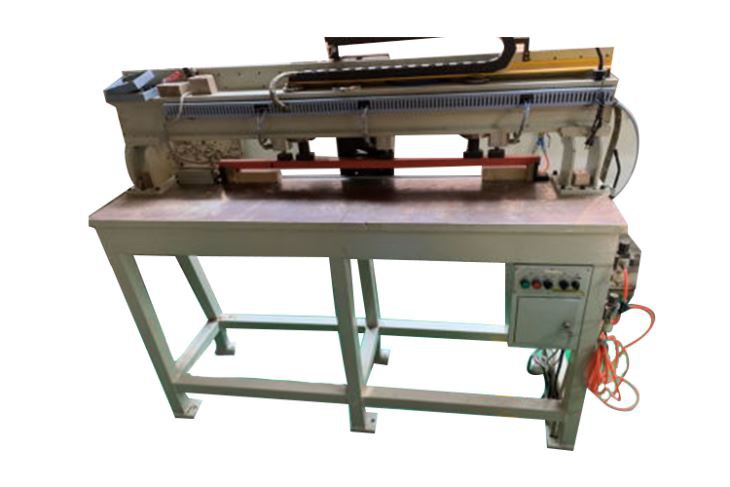

It adopts high-speed motor hydraulic structure, which is easy to operate and has high automation. Simply by placing the fixed width, length and number of swallow-tailed spacers under the horizontal arm
Features:
1. It adopts high-speed motor hydraulic structure, which is easy to operate and has high automation. Simply by placing the fixed width, length and number of swallow-tailed spacers under the horizontal arm, the material would be pressed by the lateral traversing cylinder, and the special motor automatically travels for milling and slotting to complete the forming process.
2. Equipped with hydraulic compression device, which stops automatically at the limit position.
3. It is lightweight and energy-saving, the system power does not exceed 7880w.
Technical parameter:
1. Feeding width:20—50mm
2. Product length:5—1000mm
3. Product precision:±0.2mm
4. Product thickness:1.3—3mm
5. Fastest processing speed: 22000 r/min, 700-800 pieces at once.
