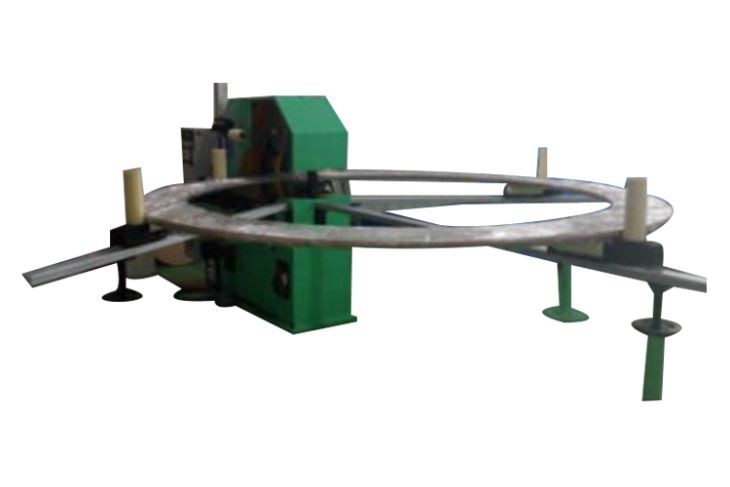

It is used for wrapping electrostatic rings in production of large-scale transformers and has distinctive advantages as follows: adjustable tensile force, wider diameter range of the workpiece, easy operation, and high efficiency, etc.
Description:
It is used for wrapping electrostatic rings in production of large-scale transformers and has distinctive advantages as follows: adjustable tensile force, wider diameter range of the workpiece, easy operation, and high efficiency, etc.
Technical Parameter:
1. Minimum internal diameter of the assembled electrostatic board: 750mm
2. Maximum outer diameter of the assembled electrostatic board: 3000mm
3. Minimum axial height of the plate: 15mm
4. Maximum axial height of the plate: 250mm
5. Minimum size of the packaged electrostatic board: 15mm
6. Maximum size of the packaged into an electrostatic plate: 300mm
7. Insulating paper tape materials: cable paper, crepe paper
8. Paper roll size: the inner diameter of the disc shaft is 75mm. the outer diameter of the disc shaft is 300mm, cable tape width: 19mm, 25mm, crepe paper width: 5mm.
9. Banding method: semi-stacked
10. Paper tape tension: 60-120N
