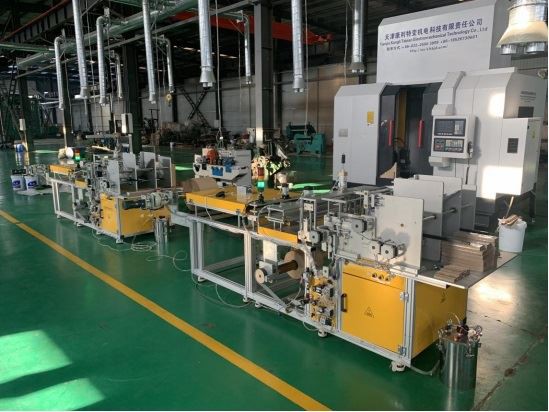

This is an intelligent machine capable of arranging, gluing and pressing the strips. This machine is controlled by computer program and thus has high precision.
Description:
This is an intelligent machine capable of arranging, gluing and pressing the strips. This machine is controlled by computer program and thus has high precision.
Technical Parameter
Length: 100-500mm
Width: 5-10mm
Thickness: 2.5-10mm
Paper thickness: 0.075-0.25mm
No | Classification | Properties | A1 model | A2 model | A4 model | A5 model |
1 | Operating properties | Strip feeding | Manually put, automatically straighten out the strip | Manually put and straighten out the strip | ||
2 | Correction | no | yes | yes | yes | |
3 | Length | 160-420 | 160-450 | 160-600 | 120-620 | |
4 | Width | 6-10 | 6-10 | 6-10 | 5-10 | |
5 | Thickness | 4-8 | 4-8 | 5-10 | 2.5-10 | |
6 | Bonding speed | 60-70/min | 50/min | 50/min | 40/min | |
7 | Spacing error(mm) | 0.02 | ||||
8 | Glue | PVA / white latex | ||||
9 | Working time | 36 | 36 | 36 | 36 | |
10 | Gas source requirement | 200l/min，≥0.5mpa | 200l/min，≥0.5mpa | 200l/min，≥0.5mpa | 200l/min，≥0.5mpa | |
11 | Mechanical property | Device size | 2000-700-1650 | 2000-700- | 2000-850- | 2000-850-1650 |
12 | Device weight | 300 | 300 | 420 | 420 | |
13 | Part surface | Anodized + white zinc | Anodized + white zinc | Anodized + white zinc | Anodized + white zinc | |
14 | Electrical Property | Power kw | 4 | 4 | 5 | 5 |
15 | Voltage | 220VAC-single phase | ||||
