This equipment is mainly used to process large insulation parts such as end rings, padding blocks and wire clamps in the transformer industry.
Description:

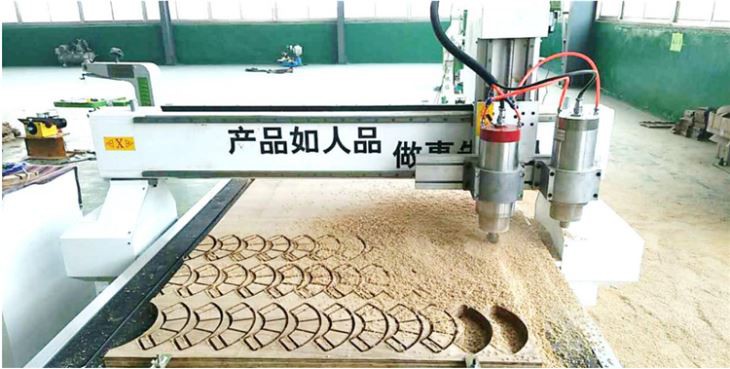

This equipment is mainly used to process large insulation parts such as end rings, padding blocks and wire clamps in the transformer industry. By setting the program, it is possible to mill a pattern of any given shape on laminated wood or laminated paperboard; it can also process circular arc grooves and linear grooves on the end ring, and can also perform drilling and partial plane machining. Special protection is provided for dust removal and metal contamination prevention.
Technical Parameter:
1. Effective stroke (mm): 1500*3000
2. Processing thickness (mm): 150
3. Fastest idle speed in the X,Y-direction(m/min):12
4. Fastest idle speed in the Z direction (m/min): 3
5. Horizontal positioning accuracy (mm): 0.2
6. Vertical positioning accuracy (mm): 0.05
7. Spindle speed r/min: 0~24000
8. Spindle power KW: 5.5
