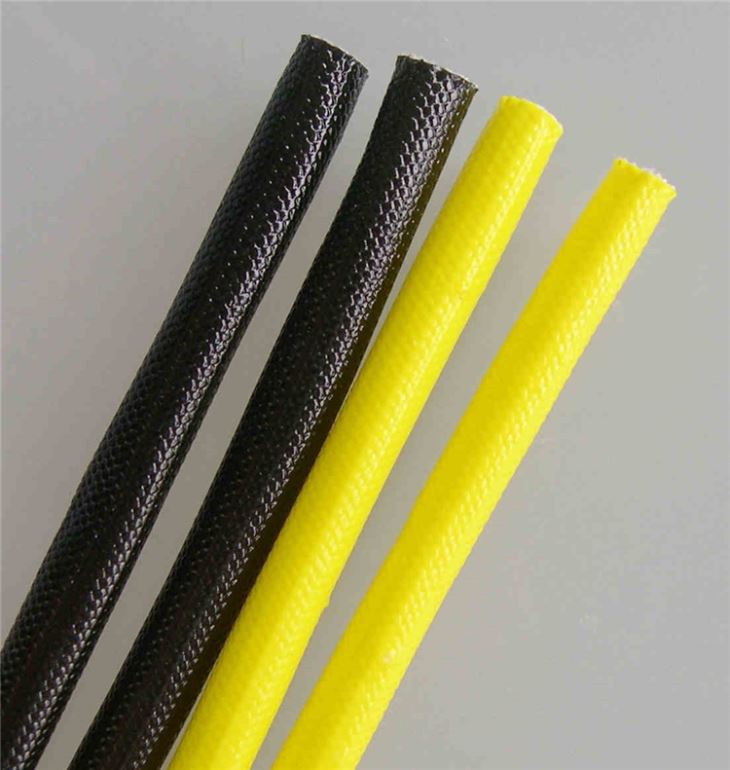

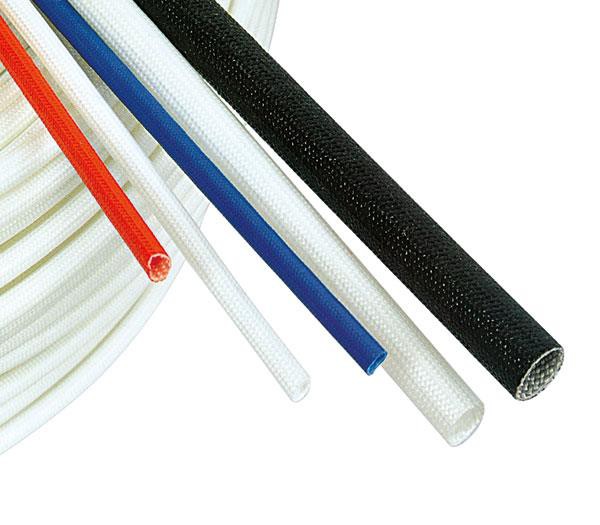

2740 acrylic fiberglass sleeving coated with acrylic resin is made of non-alkali fiber braided sleeving coated with acrylic resin.
Description
2740 acrylic fiberglass sleeving coated with acrylic resin is made of non-alkali fiber braided sleeving coated with acrylic resin.
Specification:
MOQ:10000m
Breakdown voltage:1.5kv 2.5kv 4.0 KV
Diameter: 0.5-40 mm
Packing: 1 meter or 50-100m/roll with carton or bag, can be according to customer's request.
Technical Parameter
Item | Unit | Normal value | |||
inner dia.& wall thickness(mm) | mm | inner dia(mm) | wall thickness(mm) | ||
standard | tolerance | min | max | ||
0.5-3.0 | ±0.20 | 0.45 | ±0.10 | ||
4.0-9.0 | ±0.25 | 0.55 | ±0.15 | ||
10-14 | ±0.50 | 0.70 | ±0.20 | ||
16-20 | ±1.00 | 0.90 | ±0.30 | ||
flame resistance | / | not less than 45 sec./25mm | |||
elasticity | / | no cracking or detachment of coating visible (1) after 3 hours at 200±2°C. (2) after 2 hours at -40±6°C | |||
breakdown voltage | kv.min | room temp. |
| ||
after damp |
| ||||
heat resistance | / | no cracking detachment of coating visible after 72 hours at 200±5°C | |||
quality warranty period | 6 months | ||||
Characters
Heat-resistance: F Class (155℃)
Self- extinguishment
Good dielectric & chemical resistance
Excellent softness & elasticity
Application
This product can be used for wiring insulation and mechanic protection for electrical instruments, wireless sets and domestic electrical appliances.
