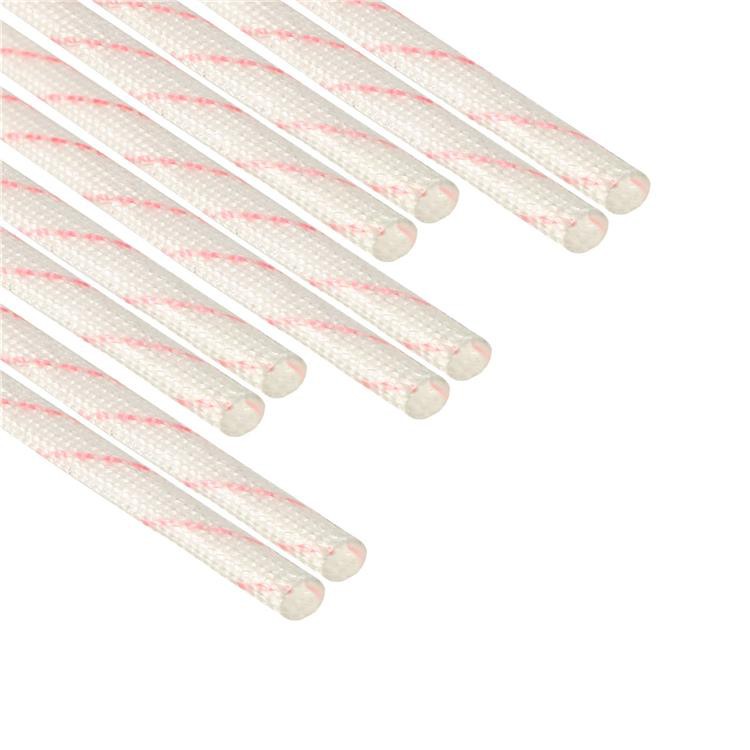

2715 PVC fiberglass Insulation Sleeving is made from non-alkali fiberglass sleeving coated with polyvinyl chloride resin under the high temperature.
Description
2715 PVC fiberglass Insulation Sleeving is made from non-alkali fiberglass sleeving coated with polyvinyl chloride resin under the high temperature.
Specification:
MOQ:10000m
Breakdown voltage:1.5kv 2.5kv 4.0 KV
Inner Diameter: 0.5-40 mm
Packing: 1meter or 50-100m/roll with carton or bag, can be according to customer's request.
Technical Parameter
Item | Unit | Normal value | ||||
Inner dia.& wall thickness(mm) | mm | inner dia(mm) | wall thickness(mm) | |||
standard | tolerance | min | max | |||
0.5;0.8 | ±0.10 | 0.20 | 0.50 | |||
1.0;1.5;2.0;2.5;3.0 | ±0.15 | 0.20 | 0.75 | |||
3.5;4.0;5.0;6.0;7.0;8.0 | ±0.25 | 0.30 | 0.75 | |||
9;10;12;14;16;18;20 | ±0.50 | 0.40 | 0.90 | |||
Bending after heating | / | No cracking or detachment of coating shall be visible after bending around mandrels after 96h at 150ºC | ||||
Bending at low temperature | No cracking or detachment of coating shall be visible after bending around mandrels while at -25ºC | |||||
Breakdown voltage | kv | Average | Lowest | |||
Room temp. | 4.0 | 2.5 | ||||
Elevated temp. | 1.2 | 0.8 | ||||
Damp heat | 1.2 | 0.8 | ||||
insulation resistance | MΩ | ≥1.0X103 | ||||
The quality warranty period | 6 month | |||||
Temperature index | 105ºC | |||||
Characters
Heat-resistance: A Class (105℃)
Self- extinguishment
Good dielectric & chemical resistance
Excellent softness & elasticity
Application
This insulation sleeving is widely used as insulating and protection material for motor and electric appliance.
