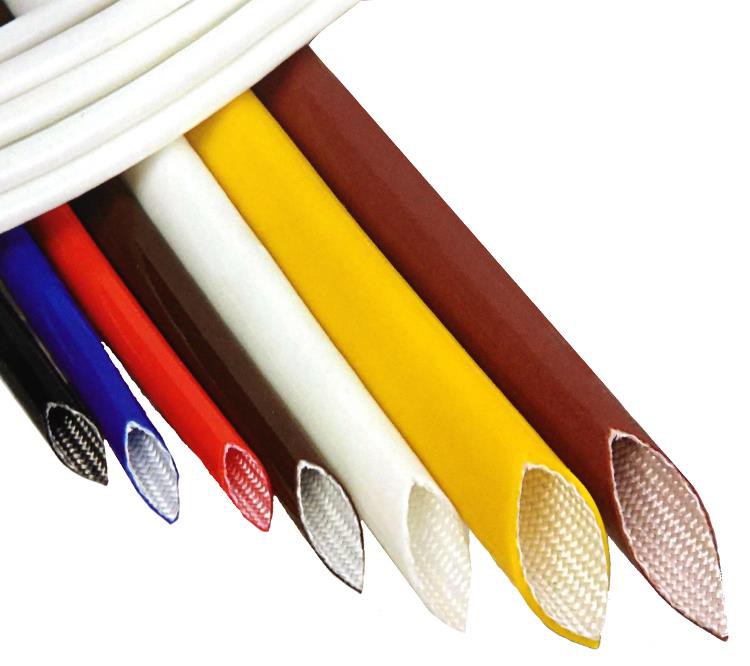

2751 Fiberglass sleeving coated with silicone rubber is made of non-alkali fiberglass coated with silicon rubber under the high temperature.
Description
2751 Fiberglass sleeving coated with silicone rubber is made of non-alkali fiberglass coated with silicon rubber under the high temperature.
Specification:
MOQ:10000 meters
Breakdown voltage:1.5kv 2.5kv 4.0kv
Diameter: 0.5-40 mm
Packing: 1 meter or 50-100m/roll with carton or bag, can be according to customer's request.
Technical Parameter
Item | Performance | Note | |
Dielectric Breakdown Voltage KV AC | Minimum Average | ≥7.0 | Before Aging |
Minimum Single Point | ≥5.0 | ||
Minimum Average | ≥3.5 | 6 Hrs* 245±5ºC | |
Minimum Single Point | ≥2.5 | ||
No Breakdown | / | 1 KV in 2% Salt Water | |
Thermal Endurance | No Indication of Crack | / | 1440 Hrs* 235±5ºC |
Fire Resistance | VW-1 | / | UL 1441 |
Characters
Heat-resistance: H Class (180℃)
Self- extinguishment
Good dielectric & chemical resistance
Excellent softness & elasticity
Application
This product is widely used for the insulating protection of H grade electrical machinery, electrical soldering iron, electrical irons, electrical rice cookers as well as other household appliance.
