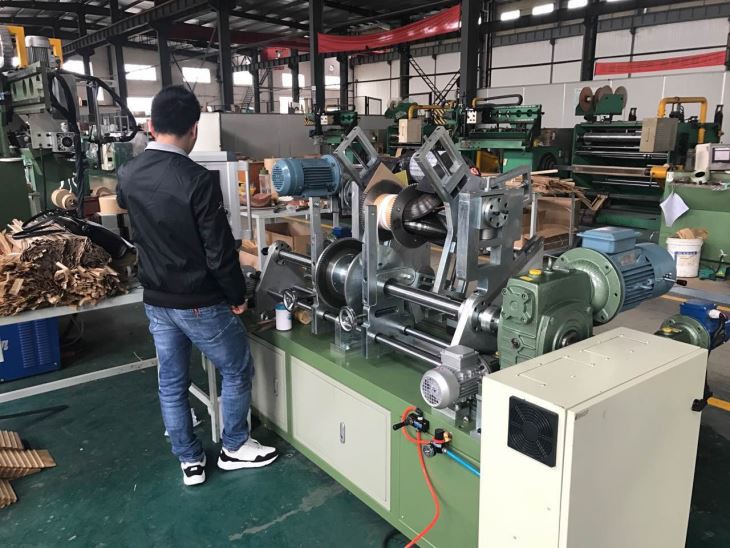

This machine can wind the S11 and S13 transformer core coils. The machine has reasonable design and simple structure; the core is centered and clamped; the high and low voltage coils can be wound at once.
Product Description
Description:
This machine can wind the S11 and S13 transformer core coils. The machine has reasonable design and simple structure; the core is centered and clamped; the high and low voltage coils can be wound at once.
Technical Parameter:
Capacity range: | 30-1600 KVA |
Winding method: | Horizontal |
The main motor power: | 3KW |
Center distance of three columns: | 820 mm |
Worktable lift distance: | 760mm |
Platform bearing: | 2000Kg |
Spindle speed: | 0-200rev/min |
Machine overall weight: | About 2.0T |
Power: | 4KW |
Machine overall size: | 1200*210*1450 |
