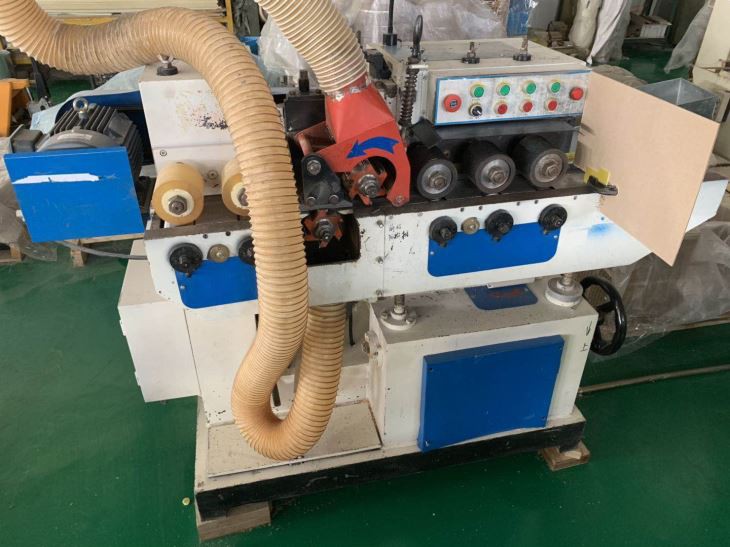

This is a smart machine that can automatically process multiple strips or round bars. It can process high-density electrical laminate wood and high-density paperboard within the diameter of 4-30mm.
Description:
This is a smart machine that can automatically process multiple strips or round bars. It can process high-density electrical laminate wood and high-density paperboard within the diameter of 4-30mm.
Features:
1. The upper and lower milling cutter mechanisms can be adjusted up, down, front and back, which can meet the needs of machining workpiece size.
2. Up and down lifting table is accurate and easy to operate and adjust,.
3. The feeding roller and the feeding roller and the discharging roller are driven at the same time, the feeding and discharging materials are stable and reliable, and there is no pressure injury and strain on the workpiece to ensure product quality.
4. The feeding and discharging mechanism adopts stepless speed change. It can be operated at any speed and is flexible, simple and light.
5. It is equipped with a backstop that prevents the material from rebounding during milling and a complete safety protection device.
Technical parameters
1. Power: 9.5KW
2. Upper and lower milling cutter shaft motor: 4.0KW 2890r/min 2 sets
3. Upper and lower milling cutter speed: 6000r/min
4. Feeding motor: 1.5KW 940r/min 1 set
5. Feeding speed: 2.5~10m/min
6. Maximum vertical stroke: 65mm
7. Processing range: diameter: φ4~φ40mm
8. Processing maximum width: 100mm
9. Processing minimum length: 200mm
10. Workpiece straightness: ≤5mm/m
11. Workpiece moisture content :8 ~ 12%
12. Cutting tool size: (outer diameter × inner diameter × width) φ105 × φ30 × 100mm
13. Dust removal port diameter:φ100mm
14. Machine overall size : 2000 × 830 × 1300mm
15. Gross weight:1050kg
