Cut-to-length line for transformer lamination
CTL series cut to length line for transformer lamination is special equipment for transformer lamination manufacturing.
-
CTL(D13)-250 cut-to-length robot line
Equipped with robotic arm stacking function, CTL(D13)-250 cut-to-length robot line is a special equipment for manufacturing small&medium sized transformer lamination.
-

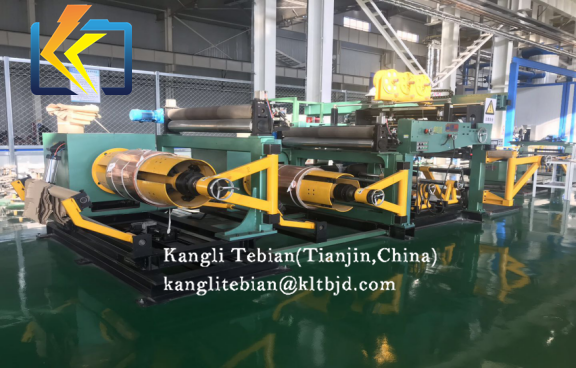

Silicon steel slitting machine
This slitting machine is special equipment to slit silicon steel sheet coil into strips,then rewind them into strip rolls with tension.
-
Core winding machine
This winding machine is designed to produce wound cores for transformers automatically.
-
High speed toroidal core winding machine
Core winding machine is the special equipment for manufacturing the step-lap open core of wound core transformer.
-
Amorphous alloy iron core shear line
Amorphous alloy iron core shear line is processing shear of amorphous alloy strip to form its core shearing equipment.
-
Three-dimensional triangular core winding machine
This machine can wind the S11 and S13 transformer core coils. The machine has reasonable design and simple structure; the core is centered and clamped
-
Three-dimensional core automatic winding machine
It is applicable to all kinds of transformer winding iron core winding equipment and different core sections (round, composite, polygon, etc.).
-
Three-dimensional core cutting machine
Suitable for the opening of steel silicon strips for the manufacture of triangular solid coil cores.
-

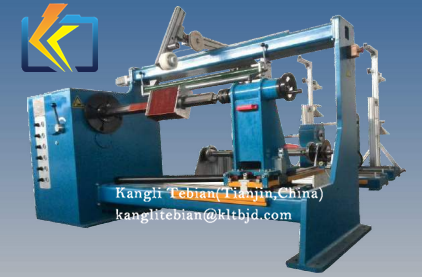

Horizontal winding machine
It’s used to manufacture coils of high capacity transformers and inductors.
-

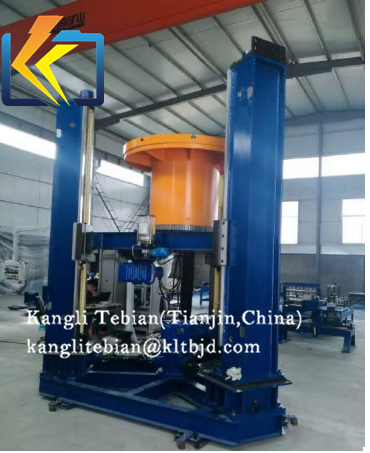

Vertical winding machine
Its used to make high voltage and super high voltage helical windings and disc windings of transformer.
-
Insulation strip wire winding machine
To wind high voltage coil or small low voltage coil of distribution transformers.The major difference with routine winding machine is that it uses insulation paper strip
-
Automatic wire-laying winding machine
This automatic wire winding machine is designed to wind coils of medium& small-size transformers.
-
Foil winding machine
It is special equipment to wind foil coil for dry type transformer.
-

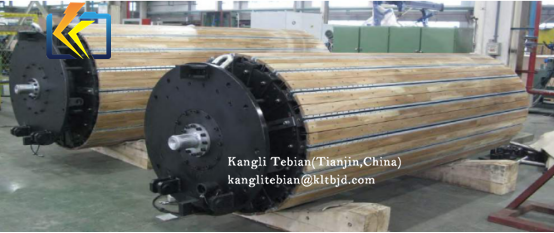

Expandable mandrel
EMD/EM are special expandable mandrels newly designed for winding transformer coils.
-

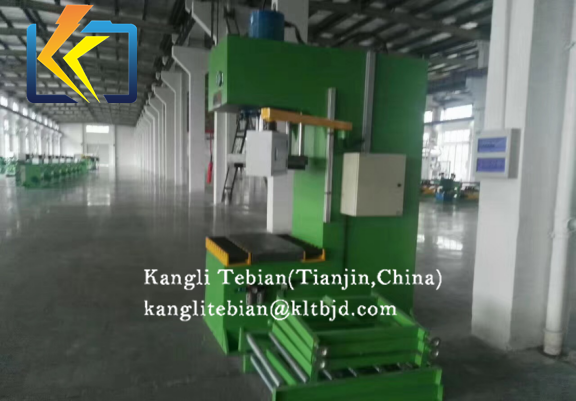

Coil pressure shaping machine
This coil press is suitable for winding size shaping of amorphous alloy transformer. The working parameters of the winding coil are set according to the design requirements and the maximum pressure of the coil.
-
Automatic winding machine
Automatic winding machine is suitable for all kinds of coil winding processes of small and medium-sized transformers
-
Amorphous body assembly
ZPT-3T body assembly platform is a special equipment for the assembly of amorphous alloy core transformer (amorphous transformer) body
-

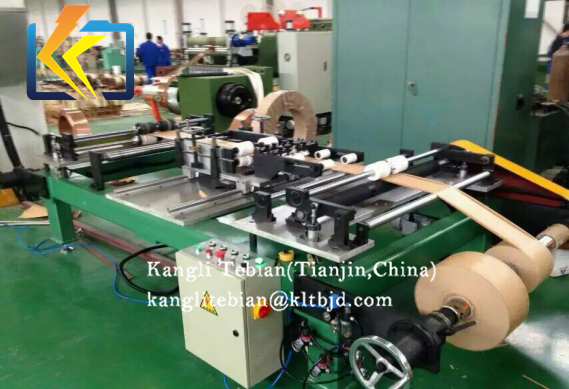

Amorphous Layer insulation folding machine
The amorphous layer insulation folding machine is mainly used for folding insulating paper between layers of transformer coils to insulate them in layers.
