Amorphous Body Assembly

This is a special equipment for the assembly of amorphous alloy core transformer (amorphous transformer) body, which can be used to assembly both oil-immersed and dry-type transformer.

Send Inquiry

Product Description

Introduction:

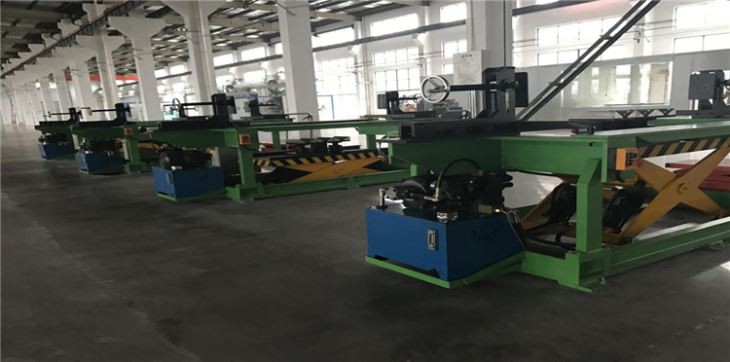

This is a special equipment for the assembly of amorphous alloy core transformer (amorphous transformer) body, which can be used to assembly both oil-immersed and dry-type transformer. It changes the traditional assembly technology: The winding is pre-placed on the lifting platform; The axis of the winding is horizontal, and each single frame core penetrates the inner hole of the winding horizontally. On this platform, the processes of iron core sealing, body insulation assembly and clamp fastening are completed. During the process, the position and height of the assembly table can be easily adjusted to meet the assembly requirements of different steps.

Technical parameter

Model	Assembly body size mm			Load- Bearing kg	Weight kg	Capacity
	length	width	height
ZPT-3	700-1600	360-700	400-900	3000	1500	Under 1600kV
ZPT-5	700-2000	430-1100	400-1150	5000	2000
ZPT-8	800-2250	500-1200	400-1300	8000	3000
ZPT-10	800-2500	500-1300	400-1500	10000	4500	Dry type transformer
