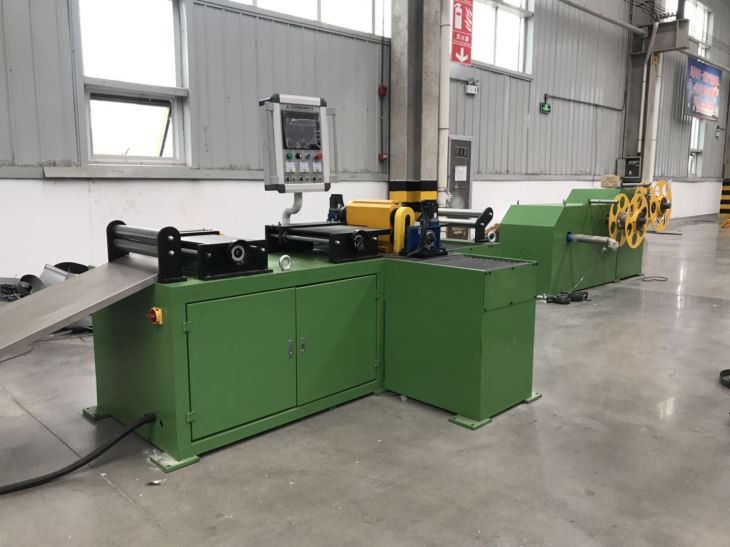

Full-featured: It can complete the opening of flat single-phase, flat three-phase, three-dimensional triangular core.
Product Description
Features:
1. Suitable for the opening of steel silicon strips for the manufacture of triangular solid coil cores.
2. Full-featured: It can complete the opening of flat single-phase, flat three-phase, three-dimensional triangular core.
3. This equipment has high degree of automation. It adopts CNC system, devices such as speed regulators, servo motor and frequency conversion to ensure high precision.
4. This equipment adopts automatic servo decoiler which can automatically track the cutting speed. It has two-way positioning system to simplify the gap adjustment between the upper and lower parts.
5. Automatic tool setting, automatic stop, and real-time display of the size of the processed strip.
Technical Parameter
The maximum diameter of the iron core | Φ250mm(planar roll); Φ400mm(stereo roll) |
The section shape of the iron core | polygonal section |
Material utilization ratio | 100%(no waste materials) |
Decoil speed | 30m/min |
Max feeding width | 550m |
Speed regulation | Stepless frequency speed regulation |
Cutting precision | ±0.2mm |
Cutting burr | ≤0.03mm |
