This coil press is suitable for shaping the coil size of amorphous alloy transformer. Its working parameters of the coil are set according to the design requirements and the maximum pressure of the coil.
Product Description
Introduction:
This coil press is suitable for shaping the coil size of amorphous alloy transformer. Its working parameters of the coil are set according to the design requirements and the maximum pressure of the coil.

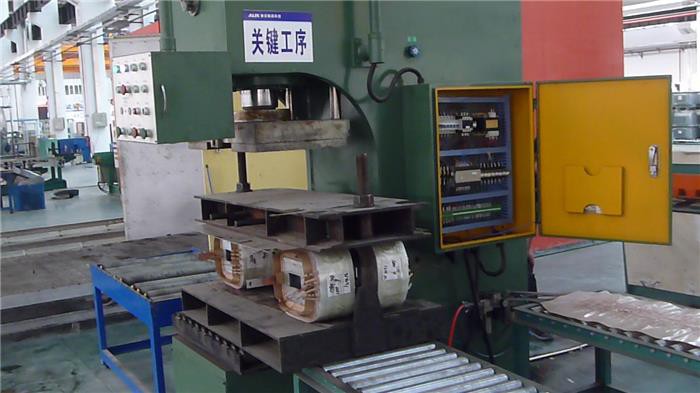

Working scene:
Technical Parameter:
1 | Nominal pressure | KN | 1000 | |
2 | Maximum hydraulic working pressure | Mpa | 26 | |
3 | Sliding block speed (input) | Mm | 385 | |
4 | Max stroke of the sliding block | Mm | 500 | |
5 | Sliding block speed (output) | mm/s | 25 | |
6 | Worktable dimension | Width | Mm | 695 |
Length | 800 | |||
7 | Worktable height | Mm | 715 | |
8 | Power | Kw | 11 | |
9 | Machine dimension | Length | Mm | 1690 |
Width | 1000 | |||
Height | 2700 | |||
10 | Weight | T | ≥6 | |
