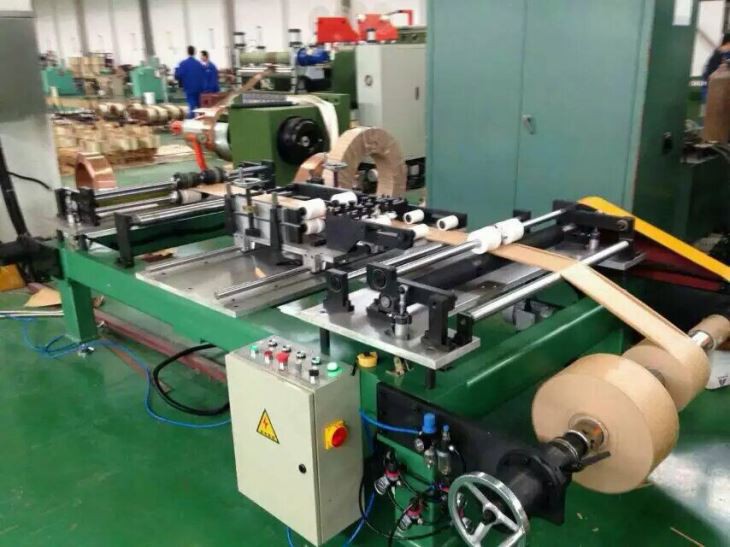

Amorphous Layer Insulation Folding Machine

The amorphous layer insulation folding machine is mainly used for folding insulating paper between layers of transformer coils.

Send Inquiry

Product Description

Introduction:

The amorphous layer insulation folding machine is mainly used for folding insulating paper between layers of transformer coils. The end insulation structure is formed at the two edges, which improves the mechanical strength and reduces the material cost.

Composition:

1) Decoiling equipment

2) Guide apparatus

3) Pinhole forming device

4) Folding channel

5) Molding device

6) Towing device

7) Winding device

8) Electrical system and pneumatic system, etc

Technical parameter

Insulating paper roll	Inner Diameter: θ76 mm	Outer diameter:≤θ400 mm
Paper specifications after forming	Inner Diameter.: θ76 mm	Outer diameter:≤θ400 mm
Insulating paper width 130----700mm
Thickness of insulation paper 0.10----0.21mm
Folding layers 5 layers /(including the bottom layer)
Folding width 6 mm/10 mm
Folding speed 0---20 M/min(frequency stepless governor )
