Stepless speed adjustment of the winding systems guarantees stable starting and braking of the winding shaft.
Product Description
Introduction:

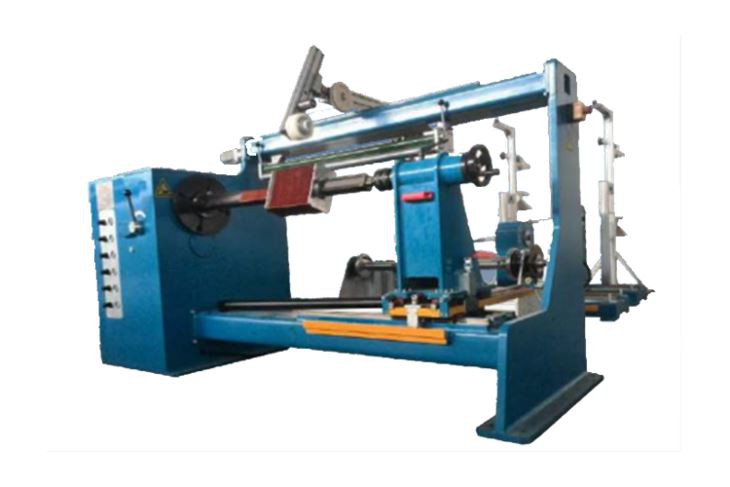

This automatic wire winding machine is designed to wind coils of medium& small-size transformers.

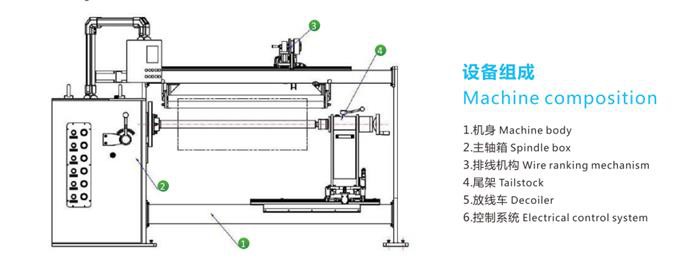

Composition:
Features:
Stepless speed adjustment of the winding systems guarantees stable starting and braking of the winding shaft.
Tensioning device and automatic ranking system with stepless width adjustment enables coils to be winded tightly and evenly.
The machine is controlled by PLC controller. Counter has automatic counting and power off memory functions.
Tailstock of the winding shaft can move horizontally and vertically. It features quick locking, convenient loading and unloading of the coils.

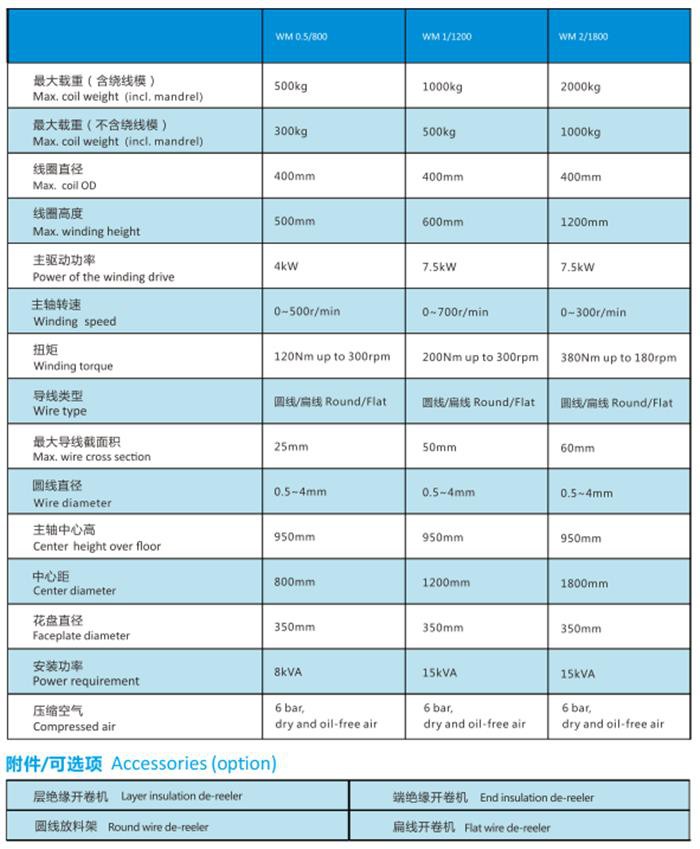

Technical parameter:
