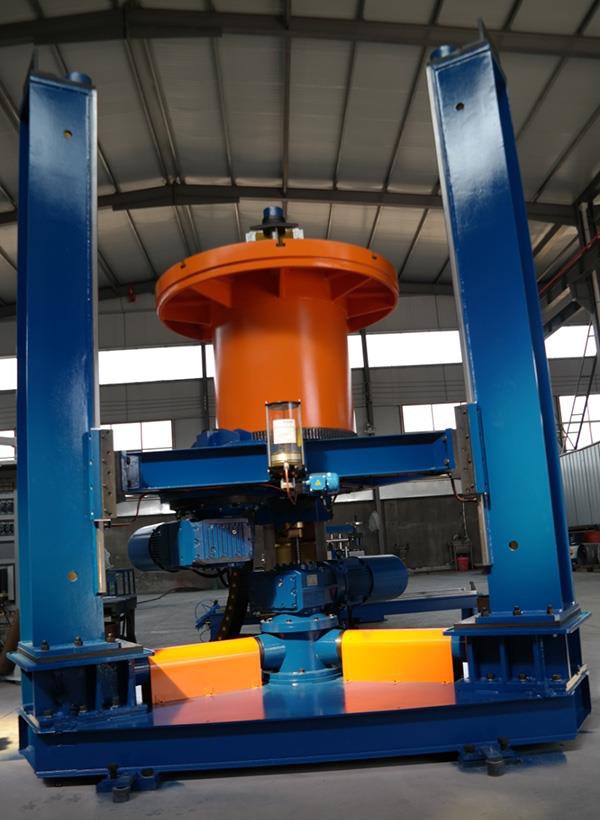

The chuck can be elevated up and down according to the height of the coil during winding. Speed of the chuck is stepless regulated.
Usage:
It's used to make high voltage and super high voltage transformer coils.
Composition：
Chuck elevation system,movable platform,column,chuck,control system
Product Description
Features:
1. The chuck can be elevated up and down according to the height of the coil during winding. Speed of the chuck is stepless regulated.
2. Reversible counter with power off memory can stopwinding machine automatically, .
3. Platform above the pit can be extended automatically according to the diameter of windings to ensure safety of the workers during winding.
Technical Parameter:
Model | VWM10 | VWM15 | VWM20 | VWM25 |
Max.Load(t) | 10 | 15 | 20 | 25 |
Max.coll diameter(mm) | 2000 | 2500 | 3000 | 3000 |
Chuck diameter(mm) | 1500 | 1800 | 2000 | 2000 |
Vertical travel of chuck (mm) | 2000 | 2000 | 3000 | 3500 |
Max.torque(N.m) | 9000 | 12000 | 18000 | 20000 |
Chuck rotation speed(r/min) | 0~15 | 0~10 | 0~10 | 0~7 |
Elevating up-down speed of chuck (m/min) | 0.5 | |||
Expanding range of expandable platform(mm) | 600~2000 | 1000~2600 | 1000~3060 | 1200~3200 |
Moving speed of expandable platform(m/min) | 0.5 | |||
Tension pressure | 400~3000 | |||
Brake pressure | 6000~30000 | |||
