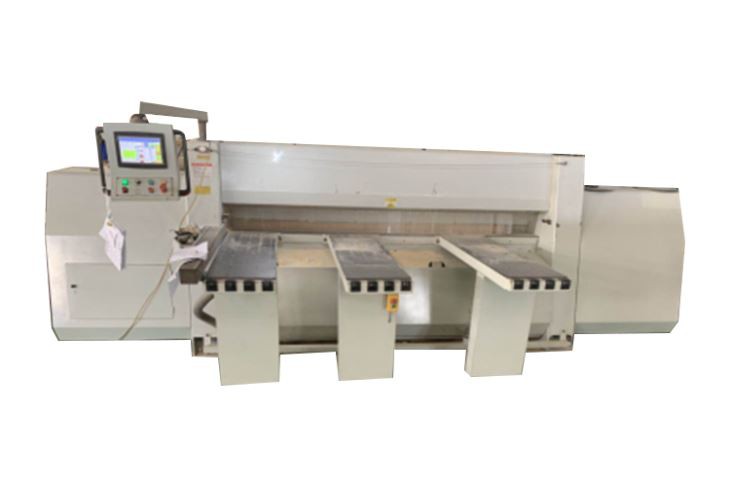

The device adopts fully automatic touch screen control. Workers input data on the screen, and the sheet that need processing can be cut with high precision.
Description:
The device adopts fully automatic touch screen control. Workers input data on the screen, and the sheet that need processing can be cut with high precision.
Technical Parameter:
1. Model MJ-270
2. Max.Cutting length: 2700mm
3. Max.Cutting thickness: 100mm
4. Positioning method: Automatic
5. Positioning accuracy: ±0.02mm
6. Cutting accuracy: ±0.10mm
7. Main saw motor power: 15kW
8. Main saw blade diameter: 400mm
9. Main shaft diameter: 60mm
10. Main saw speed: 5100r/min
11. Saw servo motor power: 1.5kW
12. Mechanical hand servo motor: 1.5kW
13. Vice saw blade diameter: 180mm
14. Sub shaft diameter: 30mm
15. Secondary saw speed: 6100r/min
16. Feeding speed: 0-60m/min
17. Cutting speed: 0-80/min
18. Return speed: 0-120m/min
19. Air pressure: 0.6-0.7mpa
20. Machine tool dimension: 5600x6000mm
21. Net weight: 5800kg
22. Total power: 22kW
