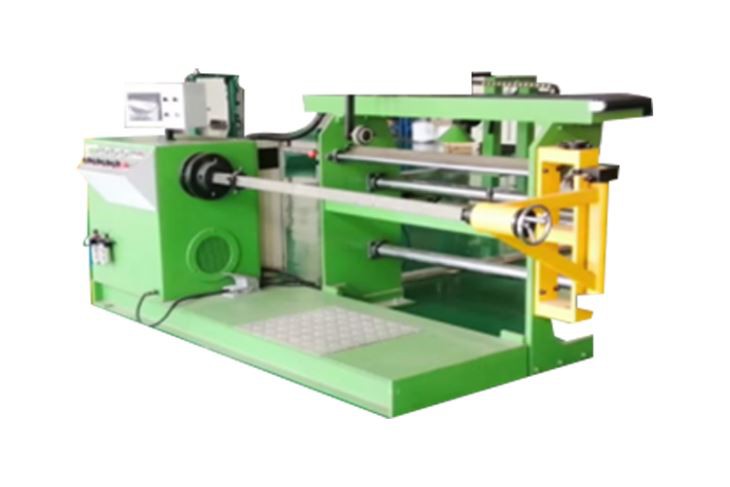

Automatic winding machine is suitable for all kinds of coil winding processes of small and medium-sized transformers, mutual inductors, reactors and so on.
Major components
Winding host
Automatic wiring devices
Layer insulation supply device
Air-operated system
PLC control and servo motor system
Touch screen and man-machine interface
Product Description
Description:
Automatic winding machine is suitable for all kinds of coil winding processes of small and medium-sized transformers, mutual inductors, reactors and so on.
Character:
1. It is simple to operate.
2. Cylinder cushioning device is added to the thread to protect the cable. It is helpful to deal with the sudden short circuit of transformer.
Technical Parameter:
1 | Centre height | 850 mm |
2 | Center distance of the reel | 0-800 mm |
3 | Work torque | max 1000 N/M |
4 | Reel size | 50x90 |
5 | Work speed | 0-370 r/min |
6 | Speed method | Stepless frequency control of motor speed |
7 | Applicable scope of artifacts | Outer diameter(o.d.)≤600mm |
Inner diameter(i.d.) ≥80mm | ||
Axial height:H ≤750mm | ||
8 | Rectangular coil diagonal length | Max: 800 mm |
9 | Workpiece weight | Max: 500kg |
10 | Layer insulation quantity | two |
11 | Machine power | About 5 kw |
12 | Maximum set number of counter turns | 9999.9 |
13 | Wire specification | Max 3x12mm |
0.8mm-3mm | ||
14 | Automatic wire arraying | Adjust the wire diameter minimum spacing of 0.01 mm |
15 | Power | 380v/50HZ |
