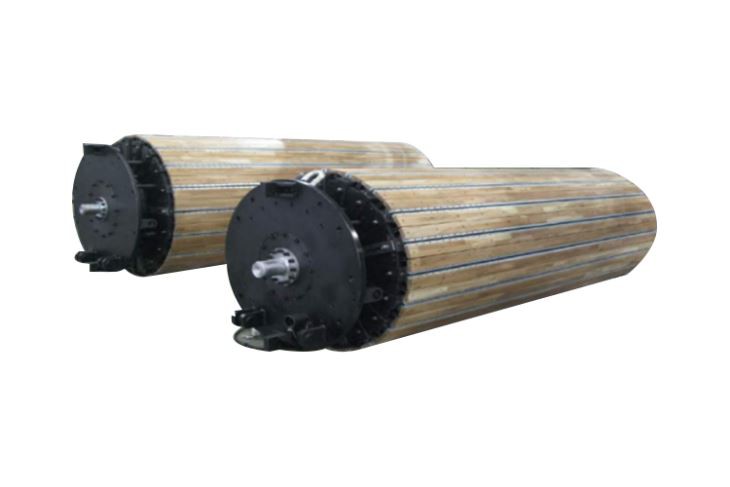

This mandrel is newly designed for winding transformer coils. They are compatible with both vertical and horizontal winding machines.
Product Description
Introduction:
This mandrel is newly designed for winding transformer coils. They are compatible with both vertical and horizontal winding machines.
Features:
1. It has electrical driving system. Its spokes can be expandable to change diameter of the mandrel.
2. It features rational construction, wide expanding range, quick demoulding and easy operation.
3. This expandable mandrel features rational construction, compact design, great rigidity and self-lock and precision dimension.
4. The diameter of the mandrel can be adjusted manually or electrically.
5. Second layer of spokes can be mounted on the base mandrel to achieve wider expanding range and higher circular degree of the mandrel.

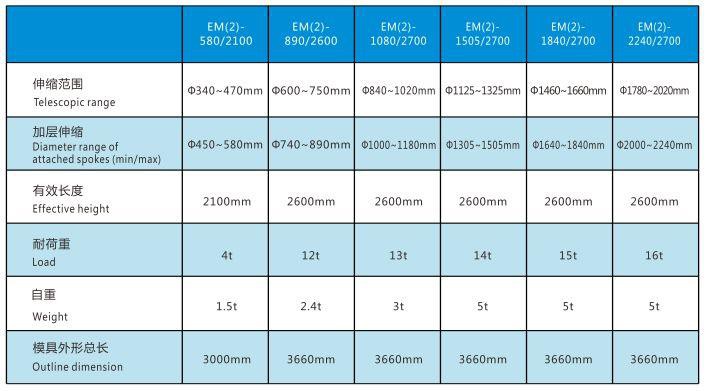

Technical Parameter:
